| Type | Design Compressive Deflection (%) | Performance | ||
| Reaction Force(KN) | Energy Absorption(KJ) | Tolerance% | ||
| GD280H×1000L | 50 | 371.0 | 14.0 | ±10 |
| GD280H×1500L | 557.0 | 21.0 | ||
| GD280H×2000L | 742.0 | 28.0 | ||
| GD280H×2500L | 927.5 | 35.0 | ||
| GD300H×1000L | 441.0 | 17.6 | ||
| G300H×1500L | 661.5 | 26.4 | ||
| GD300H×2000L | 882.0 | 35.2 | ||
| GD300H×2500L | 1102.5 | 44.0 | ||

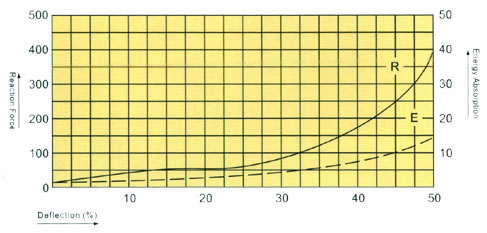

GD280H×1000L
| Rubber formula\Performance\Deflection | Design Compressive Deflection 50% | ||
| Reaction Force(KN) | Energy Absorption(KJ) | Tolerance | |
| Standard Type | 371 | 14.0 | ±10% |
GD300H×1500L
| Rubber formula\Performance\Deflection | Design Compressive Deflection 50% | ||
| Reaction Force(KN) | Energy Absorption(KJ) | Tolerance | |
| Standard Type | 661.5 | 26.5 | ±10% |
Instalación
| Specification\Size\Name | ①Bolt | ②Cushion | ③Embedded Nut | |||||||||||||||||
| D | J | S | H | m | n | N | U | V | Q | P | R | d | e | a | b | L | T | t | G | |
| GD280H | M36 | 95 | 80 | 23 | 119 | 126 | 22 | 6 | 43 | 58 | 62 | 25 | M36 | 50 | 85 | 125 | 360 | 9 | 10 | 85 |
| GD300H | M39 | 110 | 90 | 26 | 119 | 126 | 22 | 6 | 43 | 58 | 62 | 25 | M39 | 50 | 85 | 125 | 390 | 9 | 10 | 110 |
